Alarm Monitoring System | Architecture

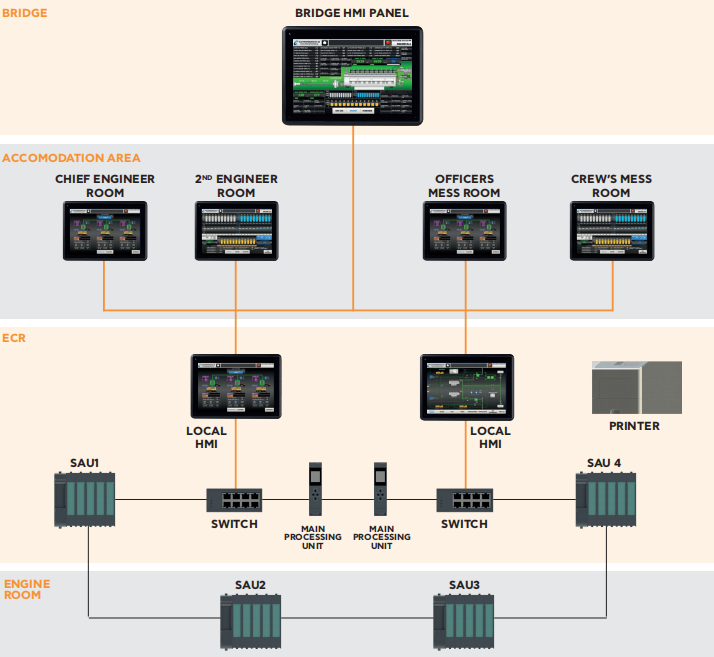

A State of the art Alarm & Monitoring System(AMS) that is consisted of a central PLC (Programmable Logic Controller) and it is connected to several remote I/O units through Ethernet Network or other networks (Modbus, Canbus etc). The central PLC can optionally be a redundant system, consisting of two central PLCs. In this case, one of the PLC’s is in operational mode while the second PLC is on standby mode. This architecture ensures the continuous availability of the system in case of one CPU failure.

The network can also be optionally redundant (through redundant loop architecture). This architecture assures the continuous availability of the network even in case of network loss (broken or disconnected cable). This architecture also provides a solution to the LAN’s distances, which often have a limited range. This problem is solved by using a series of interconnecting devices, which can be used to achieve this ranging from the repeaters to the routers and to the gateways. System’s architecture offers the ability to make a partition in an existing network  and divide it in separate networks, mainly for reasons of network security or traffic overload issues.

These components to be discussed separately are:

  • Repeaters: A repeater operates at the physical layer of the OSI model and simply retransmits an incoming electrical signal.
  • Bridges: Used to connect two separate networks in order to form a logical network.
  • Routers: Used to transfer data between two networks that have the same network layer protocols (such as TCP/IP) but not necessarily the same physical or data link protocols.
  • Gateways: A gateway is designed to connect dissimilar networks.
  • Hubs: Used to implement physical star networks for 10BaseT and token ring systems in such a way that electrical problems on individual node-to-hub links would not affect the entire network.
  • Switches: enables direct communications between multiple pairs of devices in full duplex mode; thus eliminating the limitations imposed by the classical Ethernet architecture.

Alarm Monitoring System | Sensors & SCADA System

SENSORS

Sensors are connected locally to Remote I/O Units or other local PLCs. Sensors can be of the following types:

  • Analog inputs: Range of 4–20 mA (other possibilities are 0–20 mA/±10 volts/0–10 volts)
  • Analog outputs: Range from 4–20 mA/± 10 volts/0 to 10 volts
  • Counter inputs
  • Digital inputs
  • Digital outputs

All data are transferred to the central PLC over the available network. This architecture reduces the length of cabling from local sensors to central PLC.

SCADA SYSTEM

A SCADA (Supervisory Control and Data Acquisition) system is a system consisting of a number of remote terminal units (RTUs) collecting field data, connected to a master station via a communications system. The master station displays the acquired data and allows the operator to perform remote control tasks. The accuracy and the timely transfer of data (normally real-time) allows for optimization of the operation both of the plant and the process. This results to more efficient, reliable and, most importantly, safer operations.

Alarm Monitoring System | Main Features & Components

FEATURES OF PLC/SCADA SYSTEM

  • The computer can record and store a very large amount of data
  • The data can be displayed in any way the user requires
  • Thousands of sensors over a wide area can be connected to the system
  • The operator can incorporate real data simulations into the system
  • Many types of data can be collected from the RTUs
  • The data can be viewed from anywhere locally or remotely via Internet or satellite
  • Historical archiving
  • System consideration
  • Reliability/availability
  • Speed of communications/update time/system scan rates
  • System redundancy
  • Expansion capability
  • Application software and modeling
  • User interface
  • Graphics displays
  • Alarms
  • Trends
  • RTU (and PLC) interface
  • Scalability
  • Access to data
  • Database
  • Networking
  • Fault tolerance and redundancy
  • Client/server distributed processing

SCADA HARDWARE

  • Keyboard
  • Mouse
  • Trackball
  • Touch screen
  • Graphics displays HMI panels can be installed anywhere in the network for local operations

ALARMS

  • Client server architecture
  • Time stamped alarms to 1 millisecond precision (or better)
  • Single network acknowledgment and control of alarms
  • Alarms are shared to all clients
  • Alarms displayed in chronological order
  • Dynamic allocation of alarm pages
  • User-defined formats and colors
  • Up to four adjustable trip points for each analog alarm
  • Deviation and rate of change monitoring for analog alarms
  • Selective display of alarms by category (256 categories)
  • Historical alarm and event logging
  • Context-sensitive help
  • On-line alarm disable and threshold modification
  • Event-triggered alarms
  • Alarm-triggered reports
  • Operator comments can be attached to alarms

TRENDS

  • Client server architecture
  • True trend printouts not screen dumps
  • Rubber band trend zooming
  • Export data to DBF, CSV files
  • X/Y plot capability
  • Event based trends
  • Pop-up trend display
  • Trend gridlines or profiles
  • Background trend graphics
  • Real-time multi-pen trending
  • Short and long term trend display
  • Length of data storage and frequency of monitoring can be specified on a per-point basis
  • Archiving of historical trend data
  • On-line change of time-base without loss of data
  • On-line retrieval of archived historical trend data
  • Exact value and time can be displayed
  • Trend data can be graphically represented in real-time
